Pre-Roll Cone Sizes: The Complete Guide for Cannabis Operators

Choosing the wrong pre-roll cone size doesn’t just affect the consumer experience – it affects your production output, packaging costs, SKU complexity, and retail price point. This guide covers every standard pre-roll cone size with full technical specifications, how flower density affects fill weight, and what each format means for commercial automation at scale.

Whether you’re launching your first product line or optimizing an existing one, this is the reference you’ll come back to.

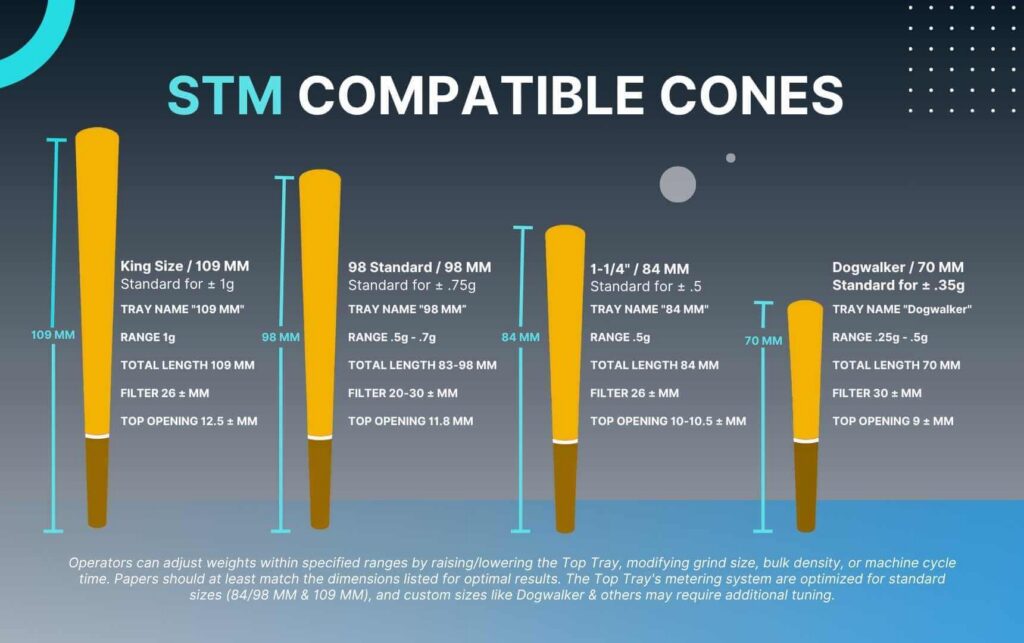

Pre-Roll Cone Size Chart: Quick Reference

Pre-Roll Cone Sizes: 70mm, 84mm, 98mm & 109mm

Pre-roll sizes are a crucial aspect of personalizing the cannabis consumer experience. They come in several handy sizes, with some of the most popular ones being 70mm, 98mm, and 109mm. Each size is designed to meet individual customer needs. In the following section, we’ll delve deeper into the characteristics of these popular pre-roll sizes and help you understand which might be most suitable to offer to your customer base.

70mm Dogwalker (Mini Pre-Rolls)
Running 70mm cones at scale? The Mini-RocketBox is optimized for this size – fills up to 143 cones in a single 45-second cycle -turning your smallest SKU into your fastest-moving one.

The 70mm Dogwalker is the smallest standard commercial pre-roll format, holding 0.25–0.5g depending on grind consistency and flower density. The name comes from the format’s short smoke time – just long enough for a quick walk around the block.

For operators, dogwalkers are a strong entry-level SKU. They sell well in multi-packs at a lower price point, drive trial from new consumers, and create a natural upsell path toward your larger formats. A 5-pack of 70mm dogwalkers at a $12–18 retail price is an easy counter add-on at any dispensary.

The narrow cone body is the most sensitive of the four standard sizes to overpacking. Grind consistency matters more here than in any other format – too fine and you’ll choke airflow, too coarse and the fill becomes uneven.

Producing dogwalkers at scale? The Mini-RocketBox Plus+ supports the 70mm dogwalker format. Because of the narrow cone diameter, results require additional tuning vs. the standard sizes – STM’s customer success team dials this in with you. Up to 10,000 pre-rolls per day with 2–3 operators. → See the Mini-RocketBox Plus+.

1¼ Pre-Rolls – Classic (84mm / ~0.5g)

The 84mm cone is the industry’s most widely used format for a reason – it sits in the exact sweet spot between quick and satisfying. At approximately 0.5g fill, it’s the right size for a personal daily-use SKU and the easiest format to move in volume at retail.

Opening diameter of 10.8mm and a 26mm filter give it a comfortable, consistent draw. For operators, the 84mm is the lowest-friction format to automate – the wider opening vs. the 70mm makes fill distribution more consistent across a tray, and the half-gram fill target is easy to achieve within tight compliance tolerances.

Running 84mm cones at commercial volume? The Mini-RocketBox Plus+ fills up to 143 cones in a single 45-second cycle with consistent pack density from the bottom up – no pre-weighing required. → See the Mini-RocketBox Plus+

98mm Pre-Rolls – 98 Standard (~0.7g)

The 98mm sits between the 1¼ and king size and has been quietly gaining ground in commercial pre-roll catalogs. At 0.5–0.75g fill, an 11.8mm opening, and a 20–30mm filter, it’s a step up for consumers who find the 84mm slightly short but aren’t ready to commit to a full gram.

For brands, the 98mm creates a distinct mid-tier SKU without requiring a different packaging format in most cases. It’s a strong format for moderate consumers and two-person sessions, and it performs well as a “premium everyday” positioning – above the standard 1¼ but below the king size price point.

The 98mm and 109mm are the two sizes where commercial automation delivers the most consistent results. Both the Mini-RocketBox Plus+ and RocketBox 2.0 are optimized for these formats – no additional tuning required, predictable output from the first cycle. → See the RocketBox 2.0

109mm Pre-Rolls – King Size (~1g)

The 109mm king size is the commercial pre-roll industry’s benchmark format. At 12.5mm opening diameter, a 26mm filter, and 1–1.6g fill capacity, it’s the most produced cone size in the U.S. legal cannabis market and the format most operators anchor their flagship SKU around.

At retail, a 1g king size pre-roll commands the strongest price-to-value perception of any standard format. It’s long enough to feel premium, fills enough flower to justify a higher ticket price, and is short enough that consumers don’t feel like they’re committing to a 45-minute session.

For commercial operators, the king size is also the most production-efficient format. The wider cone body gives the most consistent airflow through the fill cycle, and STM machines are optimized for this format out of the box.

Running king size cones at volume? The Mini-RocketBox Plus+ produces up to 10,000 king size pre-rolls per day with 2–3 operators. The RocketBox 2.0 doubles that to 20,000/day. The RocketBox Pro handles up to 40,000/day for MSOs and co-packers running multiple strains simultaneously. → See all RocketBox machines

Cigarette Tube Style Pre-Rolls

Cigarette-style pre-roll tubes are a distinct format from cone-shaped pre-rolls – uniform diameter end to end rather than tapered. They’re popular for operators who want a more traditional cigarette aesthetic in their product line. Tubes generally run at 84–98mm lengths with a white filter tip and maintain structural integrity well through the filling process.

Double-Wide Pre-Rolls

Double-wide pre-rolls maintain the length of a standard 70–79mm cone but double the diameter, producing a larger-circumference joint. They’re a niche format — less common in commercial catalogs but useful for operators building novelty or premium SKUs. Fill weight is significantly higher than a standard cone of the same length due to the increased diameter.

How Grind Size and Flower Density Affect Fill Weight

This is the variable most cone size guides skip – and it’s one of the most important things to understand before scaling production.

Two identical 109mm cones packed with different cannabis strains can hold meaningfully different gram weights even when filled to the same visual level. Dense, compact buds weigh more per unit of volume than fluffy, airy cannabis. A tight, well-trimmed indoor flower might pack to 1.2g in a king size cone; a looser outdoor harvest might reach 0.9g in the same cone at the same fill height.

Grind consistency compounds this. A medium-coarse grind – fluffy enough to allow airflow, fine enough to fill evenly – produces the most predictable and compliant fill weight. Too fine and the pack becomes dense, restricting the draw and raising the risk of overfill. Too coarse and air channels form unevenly, causing the cone to canoe.

For commercial operators this matters for two reasons. First, compliance – if your labeled weight is 1g and your flower is denser than your calibration run, you may be short-filling. Second, cost – if your flower is lighter than your calibration, you may be giving away product on every unit.

STM machines address this directly. The Mini-RocketBox Plus+ uses a nitrogen airbag system combined with an adjustable top tray and lift plate to produce consistent fill density regardless of flower variability. Operators can dial in fill weight by adjusting the top tray height rather than changing their grind. The LaunchPad Scale then quality-checks up to 72 pre-rolls simultaneously so any fill variance gets caught before packaging. → See the One Tray Workflow

Which Pre-Roll Cone Sizes Run Best on Automated Equipment?

Not all pre-roll cone sizes run equally well through automated filling machines. Here’s the honest picture:

84mm, 98mm, and 109mm are the three formats that run most cleanly through commercial pre-roll automation. Consistent cone geometry, wider opening diameters, and longer fill chambers all make these sizes easier for machines to fill evenly. No special tuning is required on STM equipment for any of these three.

70mm dogwalker cones can be automated but require more setup in most machines. The narrower opening and shorter fill chamber make them more sensitive to grind size and bulk density variation. STM’s customer success team works with operators to dial in dogwalker runs quickly and STM has a specific 70mm dog walker tray which works perfectly in any of the RocketBox series machines.

The 109mm king size is the most production-efficient format across the board. Widest opening, longest fill chamber, highest per-unit margin at retail, and most consistent machine output. If you’re choosing a primary SKU to anchor your automated production line around, king size is the answer.

For operators running multiple sizes simultaneously, the RocketBox Pro runs five stations – you can run different sizes or different strains across stations in the same production session. That’s the format for MSOs and co-packers managing complex SKU stacks. → See the RocketBox Pro

Understanding Industry Pre-Roll Paper Types

Paper choice affects burn rate, flavor, and how well a cone fills on automated equipment. Here’s what each type delivers in a commercial context.

Rice Pre-Roll Papers

Thin, slow-burning, and flavor-neutral. Rice papers don’t compete with the strain’s terpene profile, making them the preferred choice for premium flower brands where flavor expression matters. They’re the thinnest of the standard paper types and can be slightly more finicky on automated equipment at high speed – worth testing in your specific machine configuration.

Hemp Pre-Roll Papers

Made from cannabis plant fiber, hemp papers are the eco-conscious default for many licensed operators. They burn evenly at a moderate pace and add a mild, generally complementary flavor. Hemp papers are robust enough to run consistently on automated equipment and are available in a range of thicknesses.

Wood Pulp Pre-Roll Papers

The most common rolling paper material and the most machine-friendly. Thicker and faster-burning than rice or hemp, wood pulp papers are easy to work with at scale and widely available in bleached and unbleached versions. The faster burn rate can be a consideration for premium SKUs where a slower smoke is part of the product proposition.

Flax Pre-Roll Papers

Flax pre-roll papers burn evenly and are praised for their slow burn rate. They provide a mild flavor and are quite easy to roll. Like those from Trip2, transparent cellulose papers offer a unique visual appeal as the cannabis inside the joint is visible. They provide a slow burn but can be slightly more challenging to roll due to their slippery texture.

Cellulose (Clear) Papers

Transparent rolling papers made from plant cellulose. The visual appeal is strong — the flower is visible through the paper — which works well for premium or novelty SKUs. Slower burn, but the slippery texture can be more challenging to run consistently on automated equipment. Best tested before committing to a full production run.

How STM Canna Helps You Choose the Right Setup

Pre-roll cone size selection and machine selection are the same decision. The format you pick determines your fill target, your packaging spec, your compliance tolerance, and your automation configuration.

STM works with operators at every scale — from craft brands running 1,000 pre-rolls a day to MSOs producing 40,000+ daily. The Mini-RocketBox Plus+ starts at $6,600 and handles all four standard cone sizes. The RocketBox 2.0 scales to 20,000/day. The RocketBox Pro handles 40,000/day across five stations.

Producing pre-rolls at scale? The top 20 pre-roll brands run STM. Find out which machine fits your volume and cone size →

You can reach our sales team at (509) 204-3165 or schedule a live demo to see the One Tray Workflow in action.
