Commercial Pre-Roll Infusion

Automated Hash Hole & Infused Pre-Roll Machine

The Astro Infuser 2.0 injects rosin, live resin, distillate and other compatible cannabis concentrates into 12 filled pre-rolls simultaneously, processing 72 pre-rolls in about 90 seconds.

Up to 2,880/Hour machine-cycle throughput

12 At Once simultaneous concentrate injection

72 in ~90 Sec. per machine cycle

*Maximum hourly throughput is calculated from machine cycle time. Actual production output varies based on tray preparation, loading, unloading, staffing and workflow.

0.05-3.2 g programmable dose • Up to 198°F • 84-109 mm cones

Get a Custom Quote → Watch It Run →

Financing available. View financing options →

PURPOSE-BUILT PRE-ROLL INFUSION

12-Point Injection Built for Commercial Infused Pre-Roll Production

The Astro Infuser 2.0 injects 12 pre-rolls simultaneously with programmable control over concentrate amount, temperature and core placement for repeatable hash hole, donut joint and infused pre-roll production.

12-Point Simultaneous Injection
Infuse 12 pre-rolls at once.

Programmable Core Placement
Control where the concentrate core starts and stops.

0.05-3.2 g Dose Range
Dial in the concentrate amount for each pre-roll.

Heated Concentrate Delivery
Temperature control up to 198°F for compatible concentrates.

20 recipes • 84-109 mm cones • Built-in density calculator • No nitrogen or compressed air

PRECISION INFUSION TECHNOLOGY

How the Astro Infuser 2.0 Works

The Astro Infuser 2.0 automates hash hole and infused pre-roll production with 12-point simultaneous concentrate injection.

1. Load the Tray
Load 72 filled pre-rolls into an Astro injection tray.

2. Set Your Recipe
Set concentrate amount, temperature, and where the internal concentrate core starts and stops.

3. Inject 12 at a Time
Twelve individually regulated syringe-and-needle chambers inject concentrate simultaneously.

4. Complete 72 in ~90 Seconds
The system repeats across the tray, completing all 72 pre-rolls in about 90 seconds.

Up to 2,880 Pre-Rolls Per Hour

Based on approximately 90-second machine cycle time. Actual production output varies based on tray preparation, loading/unloading, staffing and workflow.*

Schedule a live demo. Contact us today.

Astro Infuser 2.0 Specifications

Built for Commercial Infused Pre-Roll Production

72 Pre-Rolls per production tray

12 Simultaneously 12-point concentrate injection

~90 Seconds per 72-count machine cycle

Up to 2,880/Hour* machine-cycle throughput

0.05-3.2 g programmable concentrate dose range

0-198°F reservoir + manifold temperature control

84-109 mm current cone compatibility

Programmable Core Placement control infusion start, stop and core length

20 Saved Recipes save temperature, dose and placement settings

Built-In Density Calculator convert target concentrate weight to dispense volume

1 Liter heated concentrate reservoir

Self-Contained no nitrogen or compressed air required

*Maximum hourly throughput is calculated from the approximately 90-second machine cycle. Actual production output varies based on tray preparation, loading/unloading, staffing and workflow.

Get a Custom Quote →

“

Excellent joint, smoked great. No runs, no canoes. Fantastic all the way through.

David L. Conscious Ventures LLC

“

Smoked perfectly and was a clean smoke. Still produced a nice hash hole most of the way down. We are working with some fire. This will fly at the projected price point, no doubt.

Gage G. C&P, LLC

What is a hash hole or donut joint?

A hash hole, also commonly called a donut joint, is an infused pre-roll with a concentrated core of rosin or another compatible cannabis concentrate running through the center of the flower. As it burns, the concentrate creates the distinctive center opening the format is known for.

Why are hash holes difficult to make at scale?

Traditional hash holes are labor-intensive because the concentrate core must be positioned through the center of the flower. Maintaining consistent dose, placement and finished product quality becomes increasingly difficult as production volume grows.

The Astro Infuser 2.0 automates much of that process by injecting compatible concentrate directly into filled pre-rolls with programmable control over concentrate amount and core placement.

Can the Astro Infuser make hash holes and donut joints?

Yes. The Astro Infuser 2.0 creates a continuous internal concentrate core inside a filled pre-roll. Operators can control the concentrate amount and where the core starts and stops within the machine's protected injection range.

How many pre-rolls can the Astro Infuser 2.0 process per hour?

The Astro Infuser 2.0 processes 72 pre-rolls in about 90 seconds, providing machine-cycle throughput of up to 2,880 pre-rolls per hour.

Machine cycle time remains the same across compatible rosin, live resin and distillate. Actual production output varies based on tray preparation, loading and unloading, staffing and workflow.

What concentrates can the Astro Infuser 2.0 inject?

The Astro Infuser 2.0 is designed for compatible concentrates including rosin, live resin and distillate, along with other concentrates that become sufficiently flowable when heated.

The reservoir and manifold can be temperature controlled up to 198°F. Many concentrates tested by STM operate around 120°F to 125°F, depending on the material.

How much concentrate can the Astro inject into each pre-roll?

Operators can program concentrate doses from approximately 0.05 g to 3.2 g per pre-roll, depending on the product and recipe being produced.

Can I control where the concentrate core is positioned?

Yes. Operators can program where the concentrate core starts and stops inside the pre-roll, allowing the position and length of the core to be adjusted.

Built-in upper and lower limits help keep concentrate away from the crutch and the open end of the cone.

What size pre-rolls can the Astro Infuser run?

The current Astro Infuser 2.0 configuration supports 84 mm through 109 mm cones. Additional sizes may be added after testing and validation.

Can production settings be saved for different products?

Yes. The Astro can store up to 20 production recipes. Recipes can save settings including the recipe name, concentrate temperature, concentrate amount and distribution position inside the pre-roll.

What utilities does the Astro Infuser require?

The Astro Infuser 2.0 operates on standard 110V power and requires surge protection and a 1500 VA UPS backup. It does not require compressed air or nitrogen.

Have More Questions? Talk to STM →

BUILT FOR COMMERCIAL PRODUCTION

Ready to Scale Infused Pre-Rolls?

The Astro Infuser 2.0 is designed for licensed producers moving beyond manual infusion or adding commercial hash hole and infused pre-roll production.

A strong fit if you:

Produce infused pre-rolls at commercial volume
Need to increase output without continually adding labor
Run multiple concentrates, doses or pre-roll SKUs
Need repeatable concentrate dosing and core placement
Want to add hash holes or donut joints to an existing pre-roll operation

Not sure you need this much automation? Tell us your current volume and production goals. We’ll help determine whether the Astro makes sense for your operation.

Astro Infuser 2.0 machine for automated hash hole and donut joint production

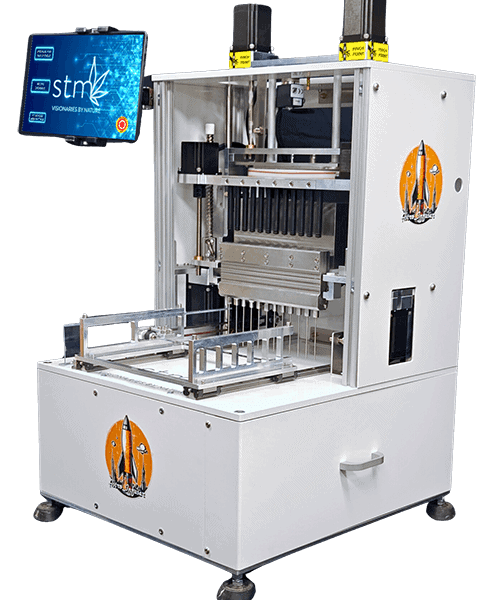

STM Canna Astro Infuser hash hole pre-roll machine

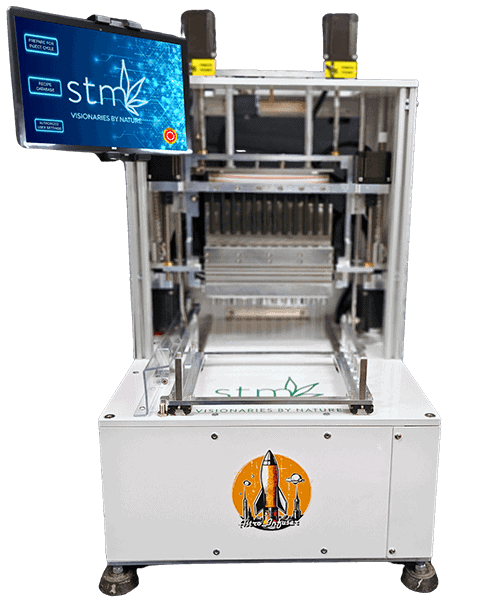

Astro Infuser 2.0 automated infused pre-roll machine
